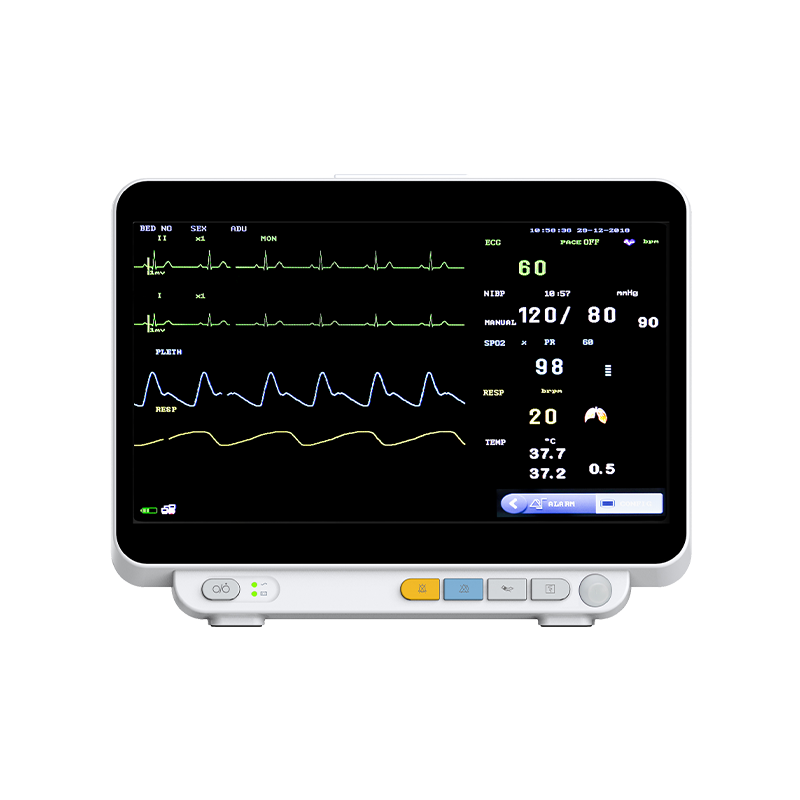

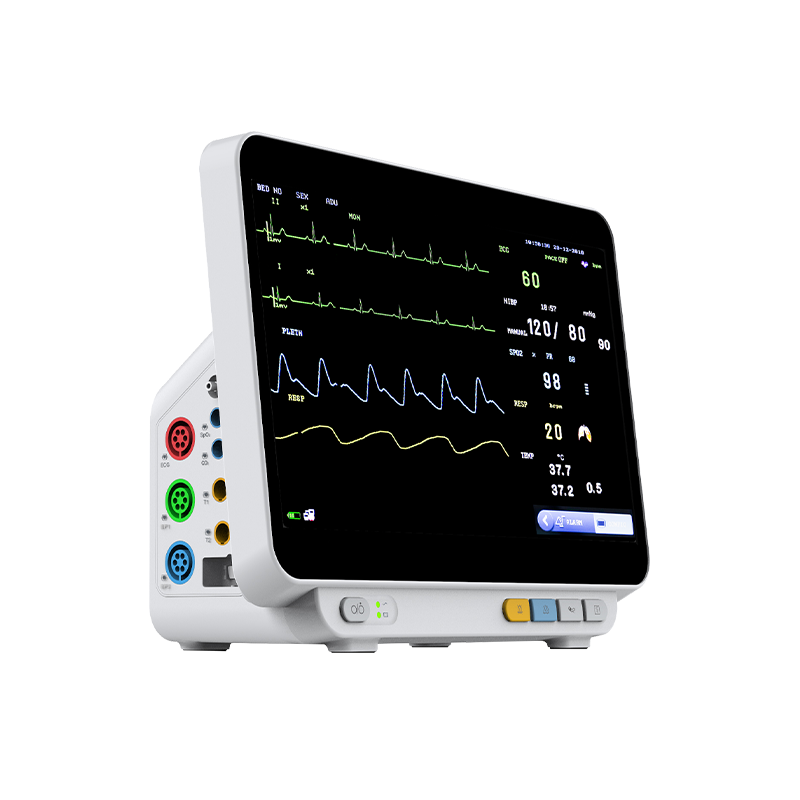

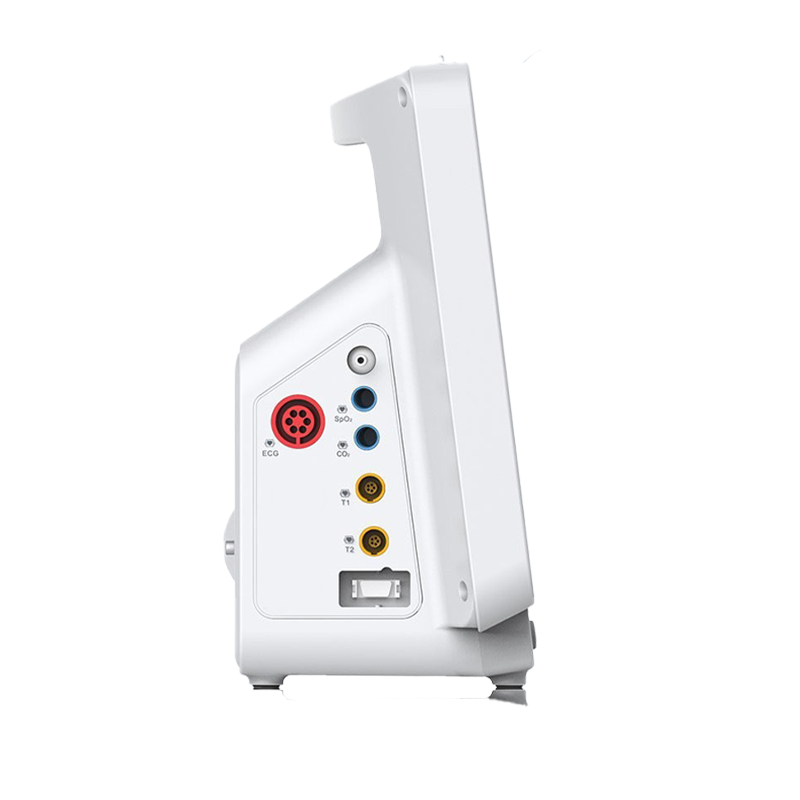

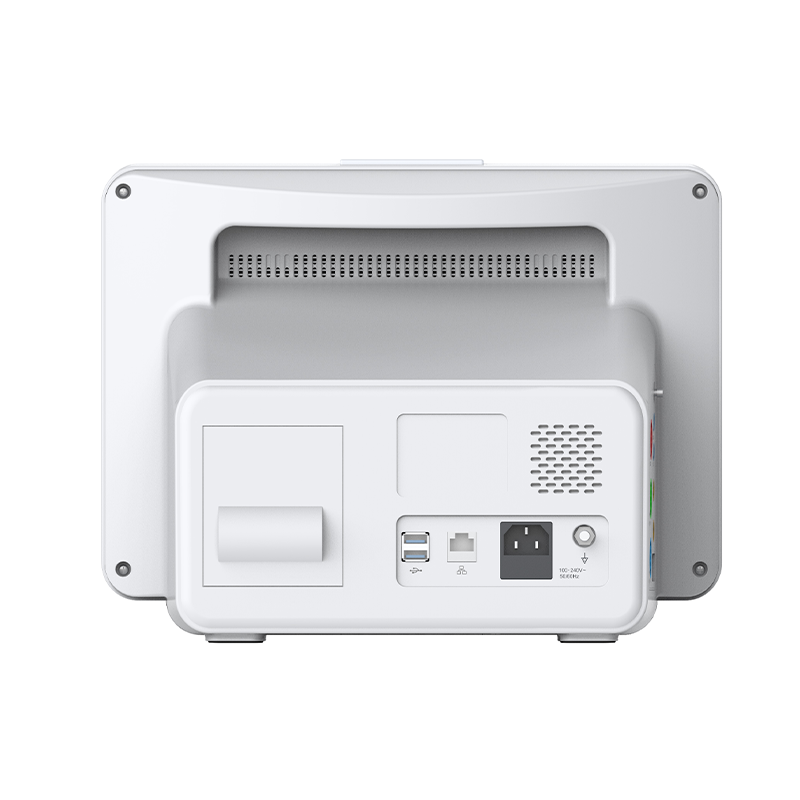

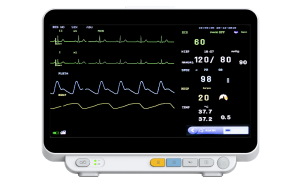

VM14Pro Veterinary Multiparameter Patient Monitor
Thanks for choosing Smar Medical, we offer you:
- Good Quality Medical Products
- Professional Service
- Safe and Fast Delivery
VM14Pro Veterinary Multiparameter Patient Monitor
FEATURES
- 14 inch color LCD touch screen.
- Suitable for various animal monitoring
- Multi- channel waveform display.ST segment analysis. Alarms sound and light can be set.Record and return electrocardiogram waveform.
- Advanced streamline outline design, portable, compact, light weight.
- Built-in high capacity lithium battery (4 hours) for emergency.
- With data power-off storage function.
- Anti-fibrillation, anti-high-frequency electrosurgical interference.
- Support wire or wireless central monitoring system.
SPECIFICATIONS
- Standard parameter: ECG/PR/TEMP/RESP/NIBP/SPO2/Touch screen
- Optional configuration: ETCO2/Nellcor SpO2/IBP/Built-in recorder/ Monitor bracket trolley/Monitor wall bracket
- Working environment conditions: Working temperature 0-40 ℃; Working humidity ≤ 85 %
- Shipping and storage conditions: Transportation and storage temperature -20- 60 ℃
Transportation and storage humidity ≤ 93 % - Voltage: 100－240 (V)AC, 50/60 (Hz); Pmax=70VA; FUSE 2AL 250V
- ECG Specification: Range 15 ～ 300bpm (beat/minute)
Precision ±1% or ±1bpm, the larger prevails
Resolution 1 bpm(beat/minute) - RESP Specification: Range 0～120BrPM
Resolution 1 BrPM
Precision ±2 BrPM - NIBP Specification: Range 40 ‒ 240 bpm
- SpO2 Specification: Range 0～100%
Resolution 1%
Precision 70～100%:±2%
0%～69%: no definition given - TEMP Specification: Range 0～50℃
Resolution 0.1℃
Precision ±0.1℃（excluding sensor error）
