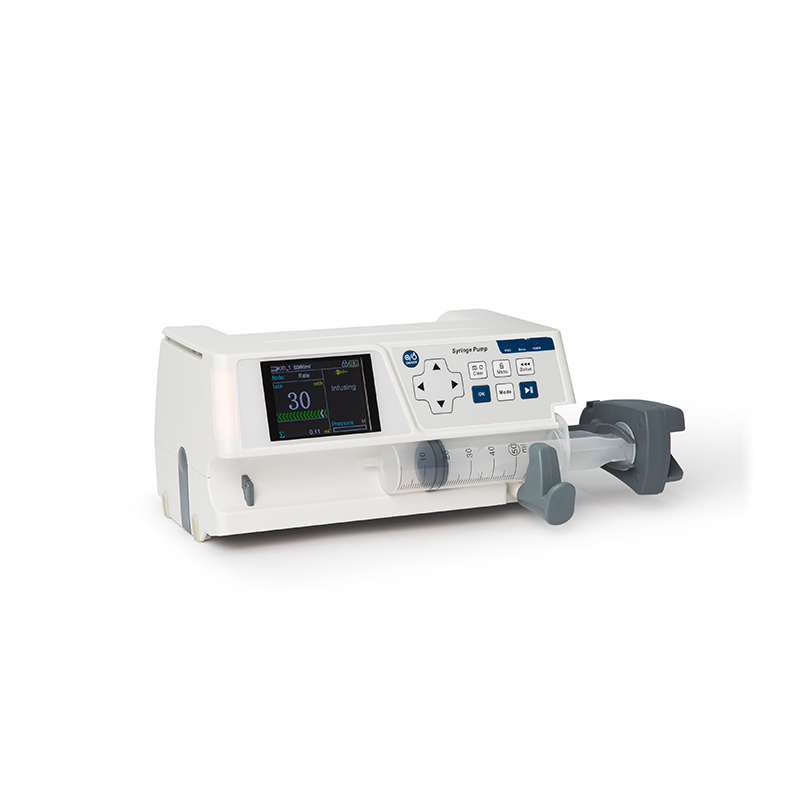

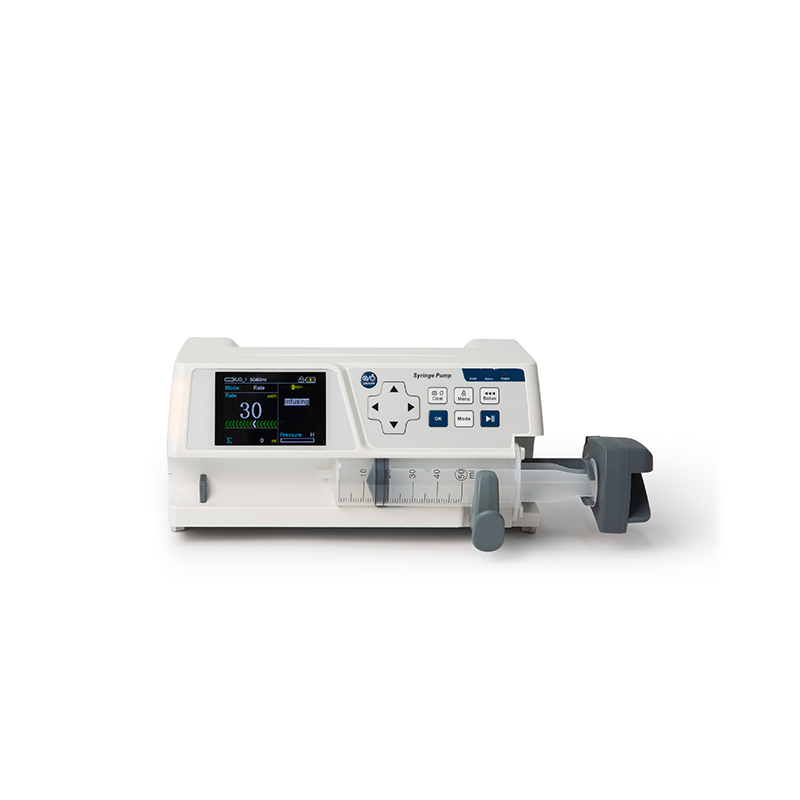

SP3 Veterinary Syringe Pump
SP3 Veterinary Syringe Pump - 图片 2
Vet Medical Products

SP3 Veterinary Syringe Pump

Thanks for choosing Smar Medical, we offer you:

  • 复选标记 Good Quality Medical Products
  • 复选标记 Professional Service
  • 复选标记 Safe and Fast Delivery
分类： ,

PRODUCT DESCRIPTION

SP3 veterinary syringe pump is a critical care device that delivers medications and fluids to animals with extreme precision. By using a motor to push a syringe plunger at a set rate, it ensures accurate dosing of essential drugs like anesthetics, insulin, or chemotherapy. This is vital for surgeries, intensive care, and any treatment where a steady, controlled infusion is necessary for patient safety.

FEATURES

  1. Open system: Accepts all standard syringes of 5ml, 10ml, 20ml/30ml, 50ml/60ml.
  2. COLOR TFT display with adjustable brightness.
  3. Manual and Automatic Bolus function.
  4. Anti-bolus system to reduce significantly after occlusion sudden release.
  5. DPS Occlusion Pressure display.
  6. 5000 events stored can be checked and downloaded.
  7. Five work modes: Rate Mode, Time Mode, Dose Mode, Sequential Mode and Drug Library Mode.
  8. Drug library with 173 injection records.
  9. Identify the specifications of syringe automatically.
  10. Audible and visual alarm: Syringe Holder Loose, Syringe Plunger Disengagement, Syringe Flange Insertion Error, Syringe not installed, Occlusion, Syringe Empty, Rate Abnormal, Battery Empty, No Battery, Key Holding During Infusion, Key Holding During Pause, Infusion Complete, Syringe Near Empty, No Action, Battery Low, Network power supply interruption, KVO completed, Pre-occlusion, Pre-completed, Stand-by completed
  11. Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions
  12. Automatically record of infusion.
  13. Visual and audible alarm system and accurate injection rate make the injection process safer and reliable.
  14. KVO and Bolus functions.
  15. Change the flow rate without stop during infusion.
  16. 8 Hours Internal Battery continuous operation.
  17. Accurate and sensitive pressure sensor detects occlusion pressure accurately.
  18. Excellent injection operation. The accuracy will be ensured even at small-volume injection.

SPECIFICATIONS

PARAMETER SPECIFICATION
Applicable syringes 5ml,10ml, 20ml, 30ml, 50ml, 60ml of any standard
Accuracy +/- 5% with correct calibration
Rate mode 50ml (60ml): 0.10ml/h-2000.0ml/h (0.01ml/h 0.1ml/h or 1ml/h step)

30ml: 0.1ml/h-1200.0ml/h (0.01ml/h 0.1ml/h or 1ml/h step)

20ml: 0.1ml/h-800.0ml/h (0.01ml/h 0.1ml/h or 1ml/h step)

10ml: 0.1ml/h-400.0ml/h (0.01ml/h 0.1ml/h or 1ml/h step)

5ml: 0.1ml~200ml/h (0.01ml/h 0.1ml/h or 1ml/h step)
Time Mode SOL. VOL: 0.1-9999.9ml (0.1ml step)

TIME: 00h00min00s: 01-99h: 59min: 59s (1s step)
Dose Mode Volume: 0.1-999.9ml (0.1ml step)

DRUG MASS: 0.1-999.9mg 0.1mg step)

DOSE: 0.001-9999ug/kg/min (0.001ug/kg/min step)

WEIGHT: 0.1-300kg (0.1kg the least step)

Dose unit: ng/kg/min, ug/kg/min, mg/kg/min, g/kg/min, U/kg/min, IU/kg/min, ng/kg/h, ug/kg/h, mg/kg/h, g/kg/h, U/kg/h, IU/kg/h, ng/min, ug/min, mg/ min, g/min, U/min, IU/min, ng/h, ug/h, mg/ h, g/h, U/h, IU/h , ml/h
Total Volume Range 0.1-9999.9ml (0.1ml step)
Drug library Mode Yes
Sequential Mode Yes
Purge Rate 50ml (60ml): 2000ml/h,

30ml: 1200ml/h,

20ml: 800ml/h

10ml: 400ml/h, 5ml: 200ml/h

Programmable and adjustable
KVO Rate 0.0~20.0 ml/h, Programmable and adjustable
DPS Occlusion Pressure 25 levels: 20~160KPA (Programmable and adjustable)
Alarms Syringe Holder Loose, Syringe Plunger Disengagement, Syringe Flange Insertion Error, Syringe not installed, Occlusion, Syringe Empty, Rate Abnormal, Battery Empty, No Battery, Key Holding During Infusion, Key Holding During Pause, Infusion Complete, Syringe Near Empty, No Action, Battery Low, Network power supply interruption, KVO completed, Pre-occlusion, Pre-completed, Stand-by completed
Alarm Volume Three levels: LOW, MEDIUM or HIGH
Bolus Rate 5ml: 0.1~200ml/h, 10ml: 0.1-400ml/h, 20ml: 0.1-800ml/h,

30ml: 0.1-1200ml/h, 50ml (60ml): 0.1-2000ml/h

Programmable and adjustable, Automatic/Manual bolus available
Bolus Volume Range: 1.0~50.0ml, (0.1ml step)
Interface USB
Brightness 1~10 levels can be selected
History Records 2000 events stored can be checked and downloaded
Power Source AC power supply: AC 100 to 240V (+/-10%), 50/60Hz;

DC Power supply: 12~15V, power>15W;

Built-in Lithium Battery: Rechargeable, 7.2V, 2600mAh.

8 hours of continuous operation
Accessories AC Power Line, Operational Manual
Protection Class Class I, Type CF, IP44
Dimension/N.W. 240mm*150mm*117mm, 2.0kg
Packing Size/G.W. 300mm*260mm*160mm, 3.0kg
