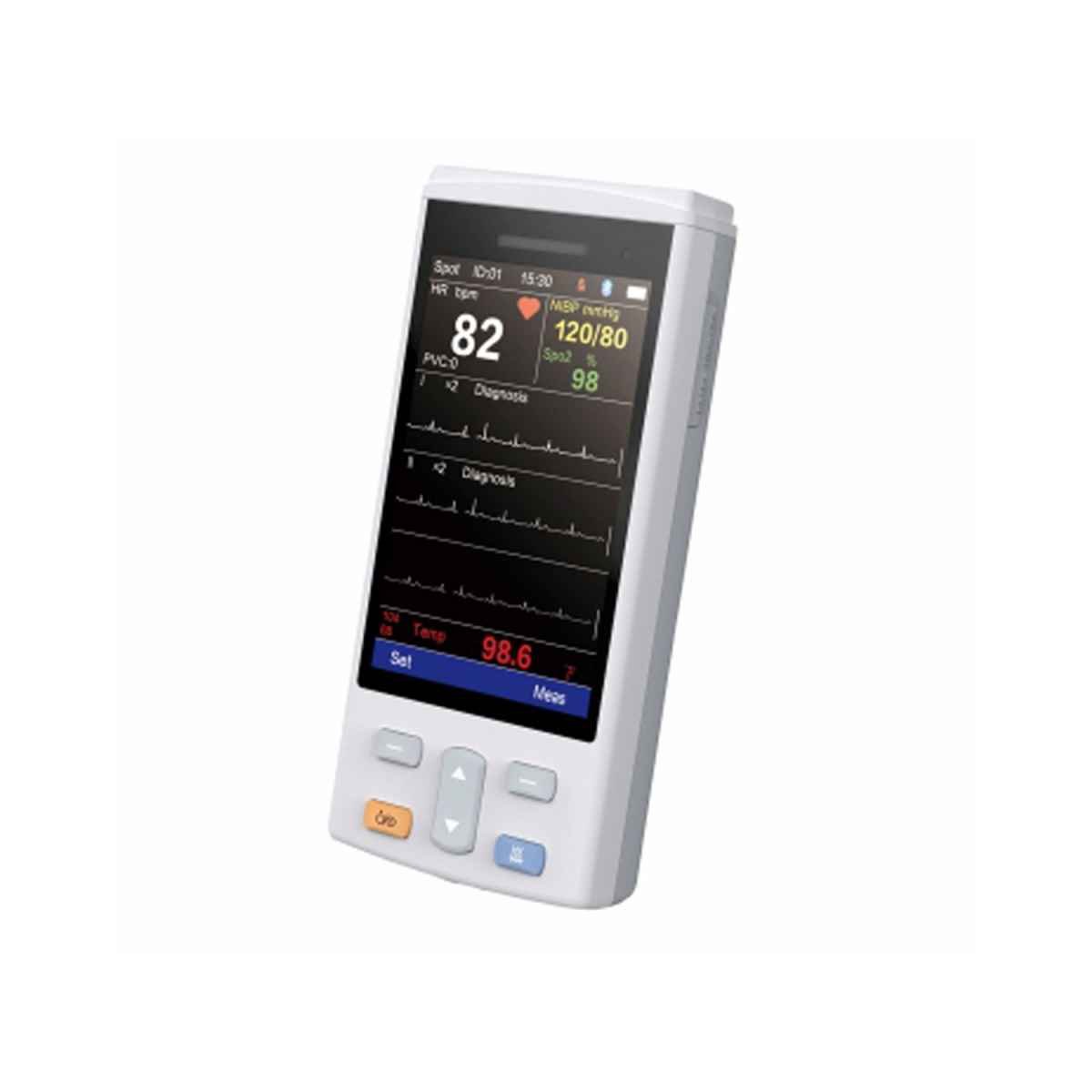

M6 Portable Veterinary Multiparameter Monitor
M6 Portable Veterinary Multiparameter Monitor - 图片 2
M6 Portable Veterinary Multiparameter Monitor - 图片 3
Vet Multiparameter Monitor

M6 Portable Veterinary Multiparameter Monitor

Thanks for choosing Smar Medical, we offer you:

  • 复选标记 Good Quality Medical Products
  • 复选标记 Professional Service
  • 复选标记 Safe and Fast Delivery
分类：

M6 Portable Veterinary Multiparameter Monitor with SPO2, ECG, NIBP, TEMP, RESP and PR

PRODUCT DESCRIPTION

The M6 handheld veterinary multiparameter monitor is used to monitor the vital signs of dogs, cats and other veterinary. The device measures oxygen saturation, temperature, heart activity (ECG), blood pressure and pulse rate. Thanks to different cuffs, the monitor can be used in an uncomplicated and flexible way.

The internal memory has a capacity for 100 patients with 200 readings each in spot mode. This mode is mainly used for measuring individual values. The monitoring mode is suitable for permanent monitoring, for example for anesthesia monitoring. In this mode, up to 48 hours of measurement data can be stored. The data can be transferred to a PC via the USB cable.

FEATURES

  • Vital signs parameters: ECG + SpO2 + NIBP + TEMP.
  • Provide the parameter of Perfusion Index 0.05%-20%
  • Date storage capabilities,support for historical data view and trend chart back to see.
  • Easy operation by 4.3”color TFT up to 100 users ID switch, each ID with 200 data records.
  • Support audio and visual alarm,support to set alarm upper and lower limit values.
  • Lithium ion battery power supply, 8 hrs continuous working, optional charging dock.
  • Support audio and visual alarm,support to set alarm upper and lower limit value.

SPECIFICATIONS

  • 4.3” colour TFT display

  • Resolution: 320 x 480

  • Internal memory: 100 patients, 200 records each

  • Data transmission: USB

  • Battery: 3.7V lithium-ion battery

  • Battery capacity: eight hours continuous operation

  • Monitor weight: 250 g

  • Power supply: 50/60 Hz

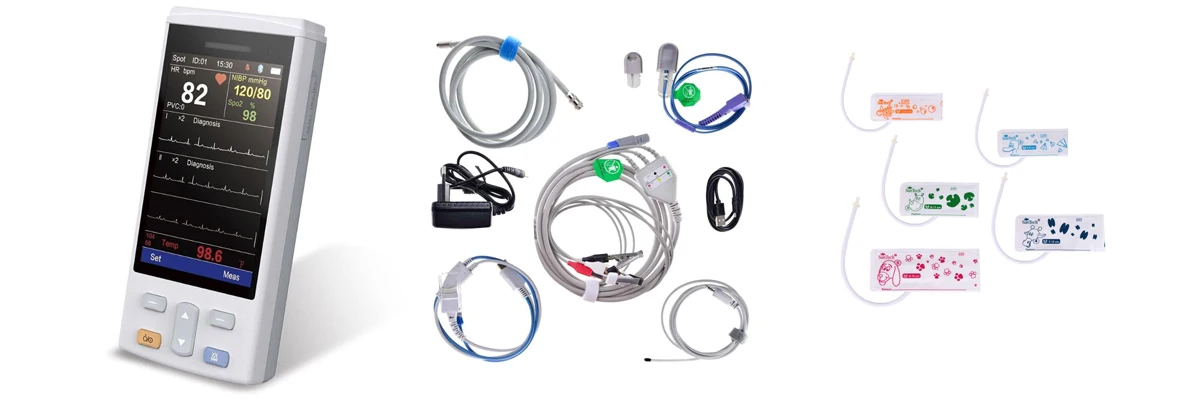

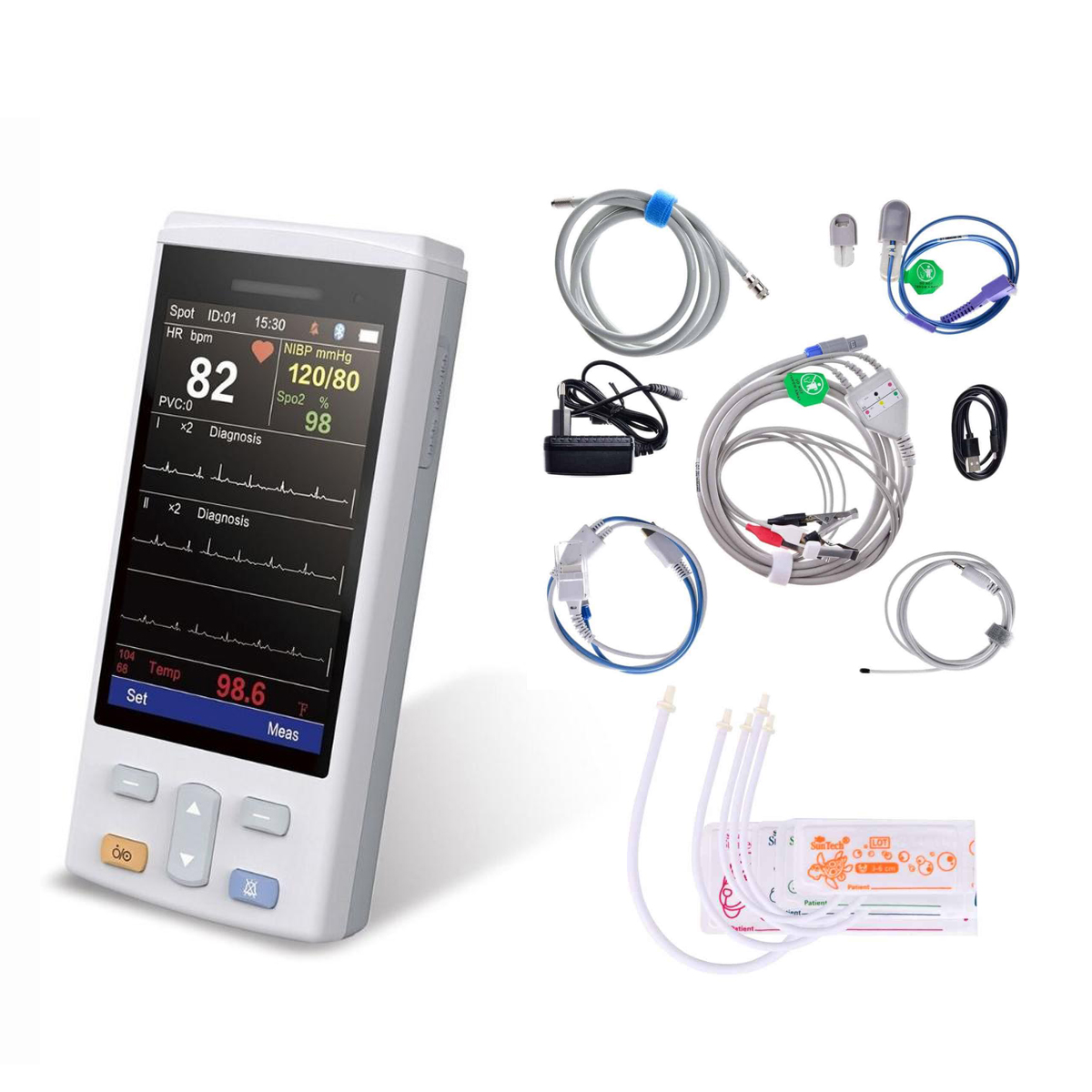

DELIVERY CONTENTS

  • M6 Vet Monitor Main Unit

  • Five Vet NIBP cuffs (3 – 6 cm, 4 – 8 cm, 6 – 11 cm, 7 – 13 cm, 8 – 15 cm)

  • NIBP Extension Tube

  • Vet SpO2 Sensor with 2pcs SpO2 clips (large and small)

  • Vet ECG cable with clips

  • Rectal temperature probe

  • Trunk cable for ECG and SpO2 sensor

  • USB cable

  • AC Adapter/Charger
