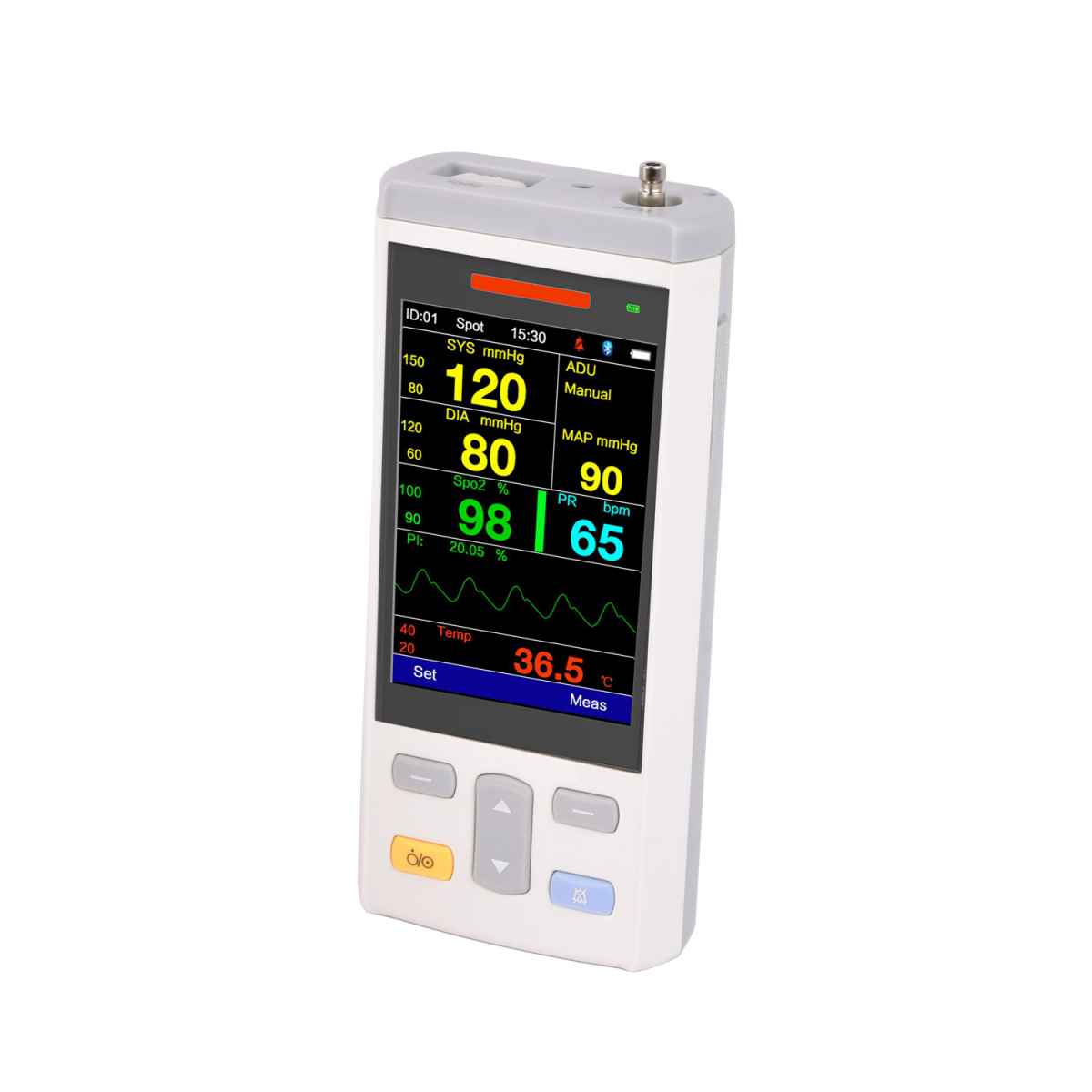

M3 Veterinary Vital Signs Monitor

M3 Vet Vital Signs Monitor

PRODUCT DESCRIPTION

M3 Mini Veterinary Vital Signs Monitor is the smallest multi-parameter vital signs monitor. It is with the parameters of SPO2, NIBP, PR, TEMP. It is highly compact and portable to carry out. Also it is providing fast and reliable measurements for the veterinary patients. The measuring size of patients animals range from the small to big animals such as cats dogs, horses. It is suitable for vet hospital, clinic, and animal labs.

FEATURES

• Small handheld vet monitor, easy to use,
• Parameters: SPO2+NIBP+TEMP+PR
• Accurate measurement in 0.05% Low Perfusion Index
• Audio and visual alarms
• Records up to 48 hours of measurement data
• Suitable for different size of animals
• Can widely be used in veterinary clinics, pet hospitals etc

NIBP Measurement Range

	Large Animal	Small Animal
SYS	40 ~ 270 mmHg	40 ~ 200 mmHg
MEAN	20 ~ 230 mmHg	20~ 165 mmHg
DIA	10 ~ 210 mmHg	10 ~ 150 mmHg

Oxygen Saturation (%SpO2)

Measurement Range

• SpO2: 0 – 100%
• Pulse Rate: 0 – 500bpm
• Perfusion Index: 0.05 – 20%

Temperature

• Measurement Range: 25 – 45°C
• Resolution: 0.1°C
• Accuracy: 0.1°C

SPECIFICATIONS

Performance

Display	3.5″ color TFT screen
Indicator	Alarm indicator, power indicator
Alarm	Probe off, low power
Species	Dog, Cat, Horse, Cattle, Sheep and Pig
Resolution	320*480
Trace	1 plethysmogram waveform
Modes	Visual and audio
Data Storage	100 patient ID’s, 200 data sets per patient



Dimensions/Operating & Storage

Dimensions	146 x 67 x 30 mm
Weight	250g
Power Type	Lithium ion battery
Operation Time	8 hours for normal operation
Operating Temperature	0 – 45°C
Storage/Transportation Temperature	-20 ~ 65°C
Operating Humidity	15 – 90% non condensing
Storage Humidity	0 – 95% non condensing
Operating Altitude	Up to 5000m
