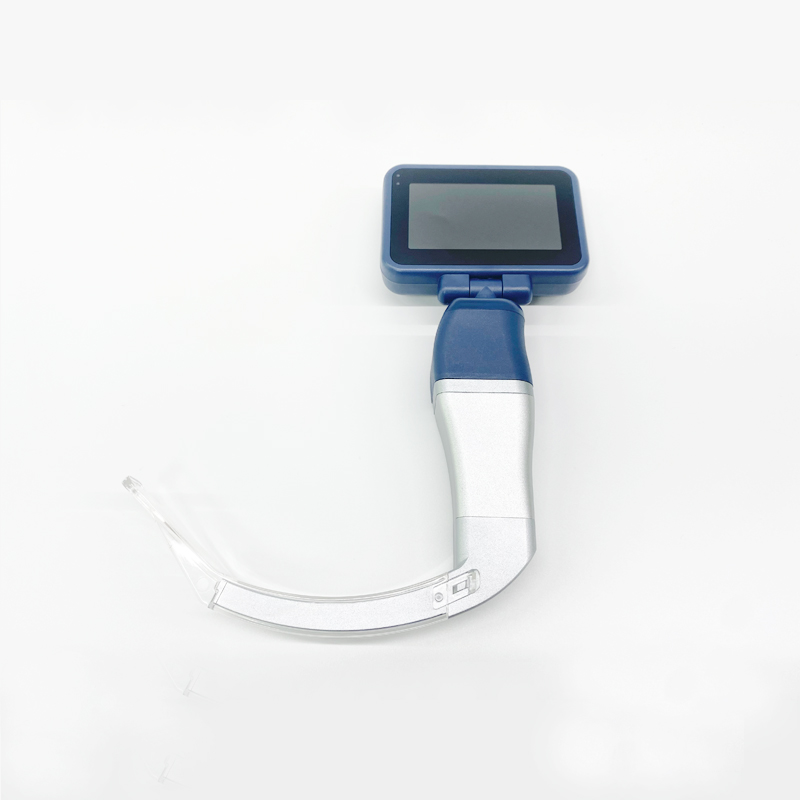

CR-31D Video Laryngoscope with Disposable Blades
CR-31D Video Laryngoscope with Disposable Blades - 图片 2
CR-31D Video Laryngoscope with Disposable Blades - 图片 3
Video Laryngoscpe

CR-31D Video Laryngoscope with Disposable Blades

Thanks for choosing Smar Medical, we offer you:

  • 复选标记 Good Quality Medical Products
  • 复选标记 Professional Service
  • 复选标记 Safe and Fast Delivery
分类：

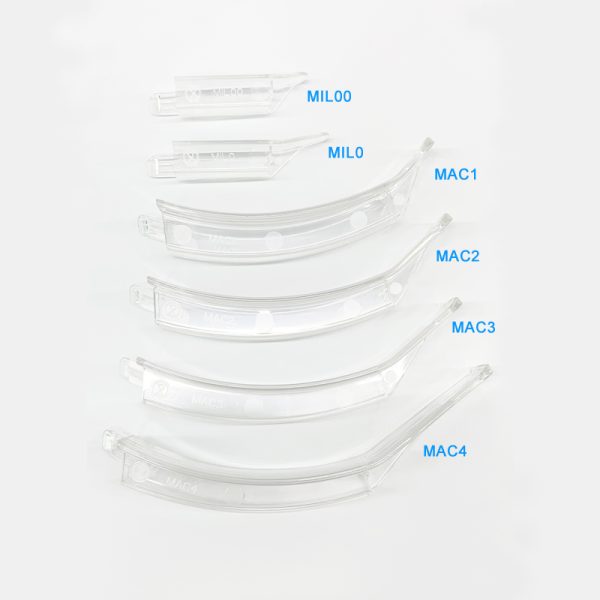

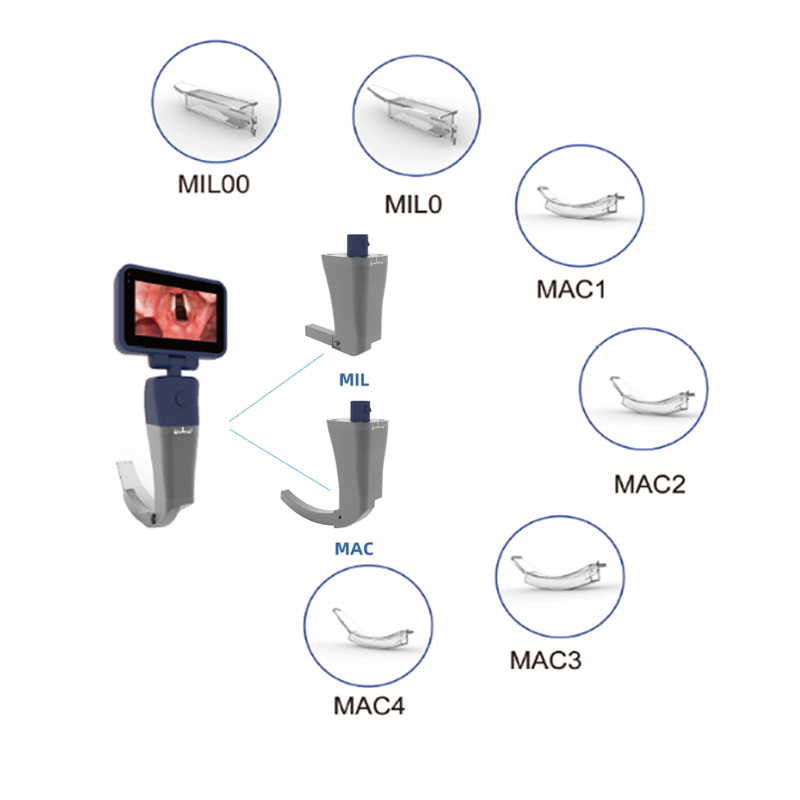

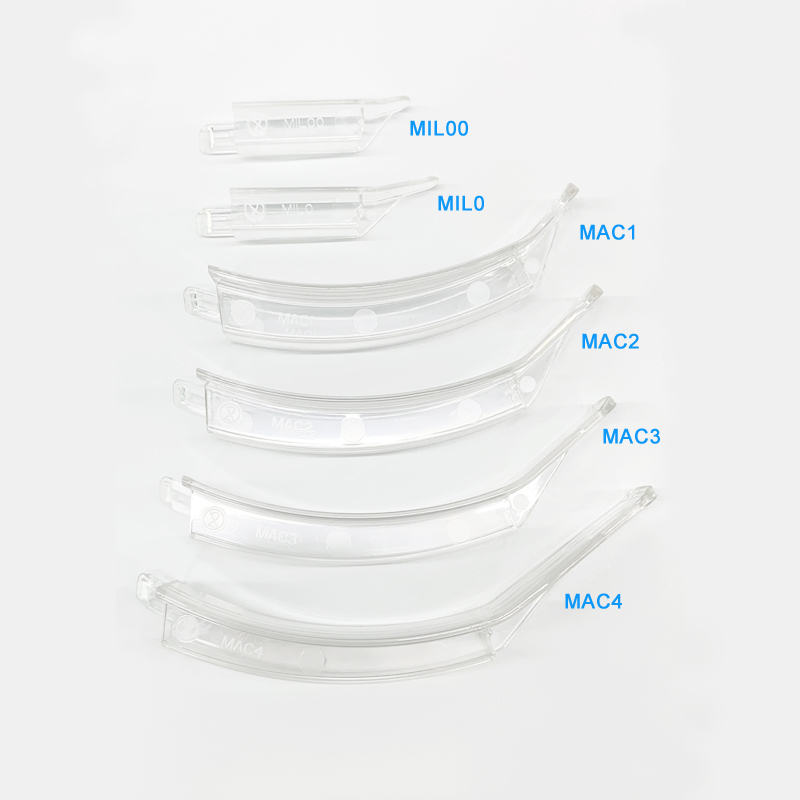

In the full set of CR-31D Disposable video laryngoscope, there are including 2 different handle (Mac and MIL) and 6 disposable blades with different sizes ( MIL00、MIL0、MAC1、MAC2、MAC3、MAC4).

PRODUCT DESCRIPTION

Video Laryngoscope solution can be used to provoke patient’s glottis and expose egiplottis, guide medical staffs to accurately intubate airway for anesthesia or first aid, and also for oral inspection and treatment.

Why use Video Laryngoscope?

  • Make airway intubation more rapid, accurate, reduce damage, and can cope with difficult airway effectively.
  • More thorough, convenient for operation, easy to record the case for sharing and teaching purpose.
  • Safer, reliable and suitable airway management for neonate, difficult airway patient etc.
  • Allow doctors to better respond to emergency intubation patients and adapt to all rescue environment.
  • New  generation products, multi-functional, convenient, durable, and good quality with affordable price.

 FEATURES

Safety

  • Medical grade alloy with high flexure strength.
  • Upper connector design for more stable use
  • Optional disposable version to avoid cross infection
  • Passing waterproof grade IPX7 testing

Cost Effective

  • Rechargeable lithium battery
  • High-cost-performance blades
  • 3-in-1 system integration

Intelligent

  • Anti-fog lens with power on used
  • Omnidirectional rotation screen design for better sight
  • One button operation for image, recording and review
  • Automatic coverage of full record
  • Low battery alarm notice

SPECIFICATIONS

Machine:

  • Display: 3.2 inch LCD /4.5 inch touch screen full view
  • Resolution Ratio: 1280*720 (RGB)
  • Viewing Angle: ≥60°
  • Power: <2W
  • Display front and back left & right rotation angle:  0°-150°，0°-270°
  • Weight: 225g

Camera:

  • lliuminance: ≥400 LUX
  • Resolution Ratio: 1280*720 px

Image/Video Function:

  • Output: USB output, automatic overage of full record. Easy to storage and establish image/video
  • Memory type: Micro SD card 16 GB

Battery:

  • Battery type:  Rechargeable lithium battery
  • Capacity: 1500mAh
  • Cycle life of battery: ＞500 times
  • Battery working time: ＞200min
  • Charging time: ＜3hrs
  • Charging port: Micro USB
