CA80 Mini Veterinary Capnograph Monitor

CA80 Portable Veterinary Capnograph Monitor

PRODUCT DESCRIPTION

CA80 Portable Vet Capnography Monitor is used to measure the ETCO2, FICO2, RESP for veterinary. It is highly compact and portable to carry out. Also it is providing fast and reliable measurements for the patients. The measuring size of patients range from small to big animals such as cats, dogs and horses. It is suitable for vet hospitals, pet clinics, and animal labs.

FEATURES

1. Parameters: ETCO2, fiCO2 and RESP.
2. Small in size, light in weight, only 50 grams.
3. One-key operation, low power consumption, up to 3 working hours.
4. Constant temperature control system to prevent water vapor interference effectively.

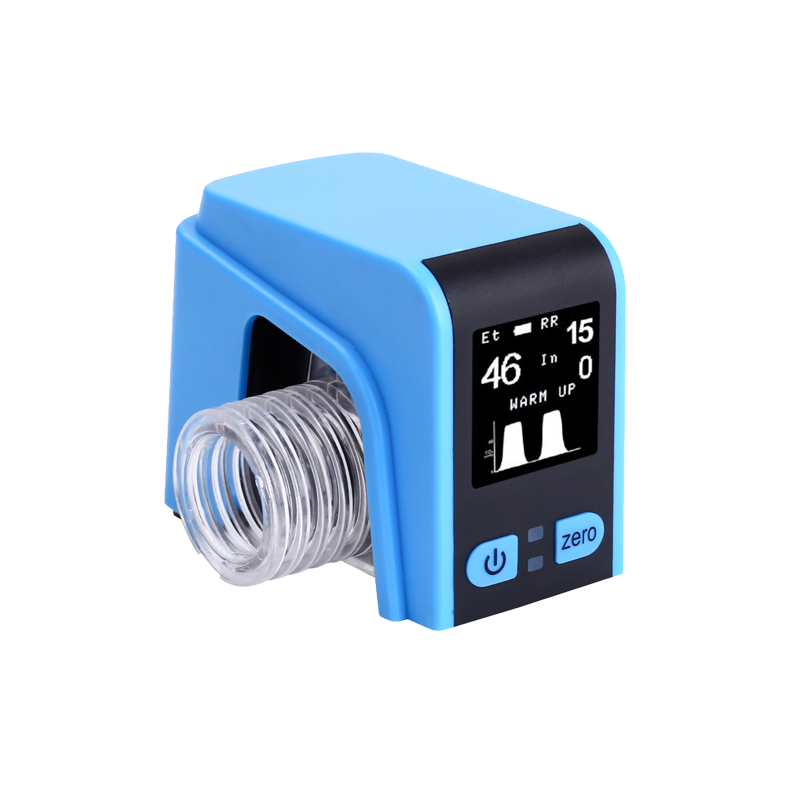

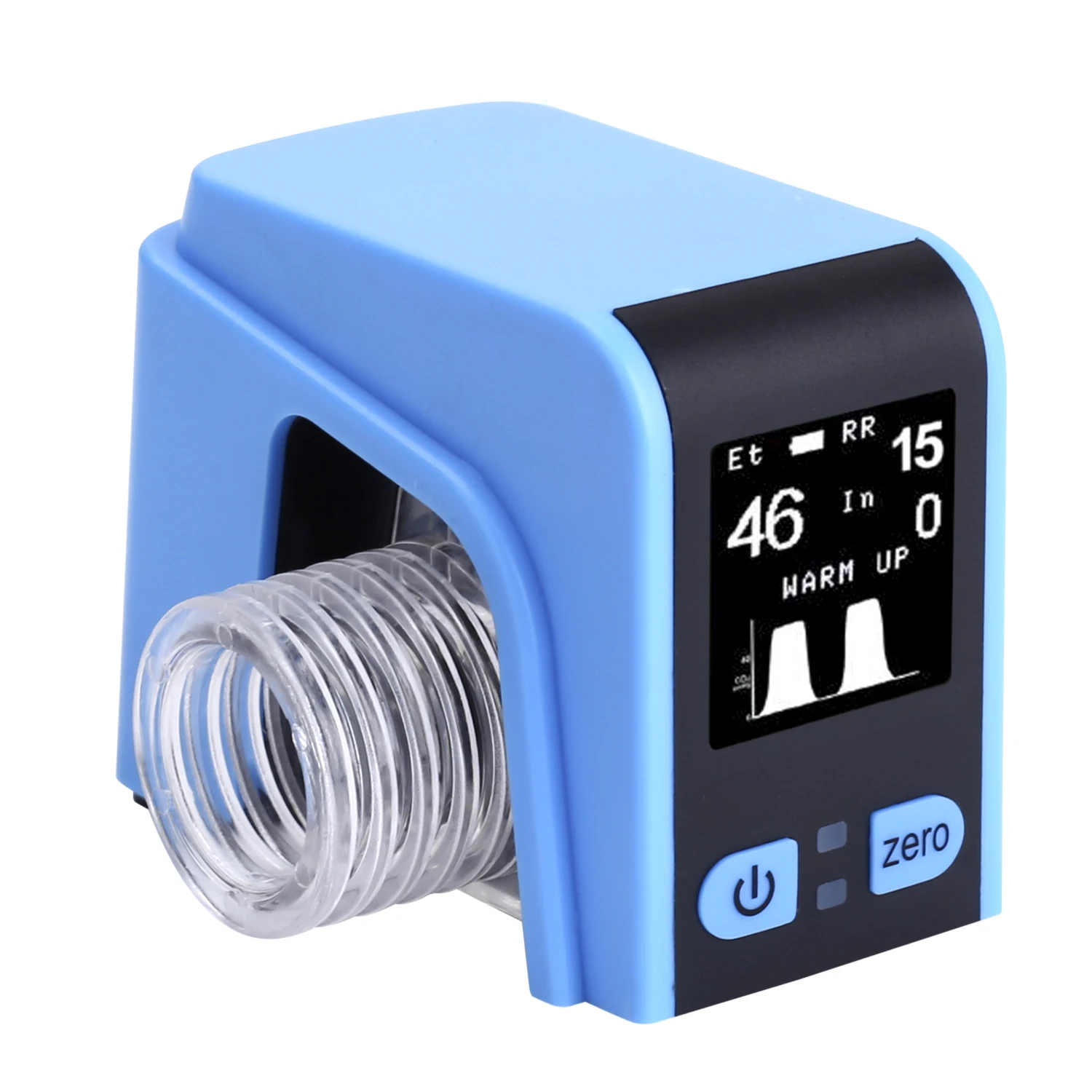

5. Large font display and waveform interface, unique inhaled carbon dioxide function.
6. Built-in lithium battery, waterproof IPX6.
7. Suitable for all kinds of veterinary.

SPECIFICATIONS

Transducer Type: Capno Micro Mainstream Capnometer
CO2 Accuracy:

• 0 – 40 mmHg ±2 mmHg
• 41 – 70 mmHg ±5% of reading
• 71 -100 mmHg ±8% of reading

Respiratory Rate:

• Range: 3 – 99 BPM
• Accuracy: ±1 breath

Alarm: Check adapter, No breath, Battery too low, ETCO2 too low, ETCO2 too high, INCO2 too high, RR too low, RR too high
Calibration: No routine user calibration required, the sensor automatic zero when plug in the adapter
Power Requirements:

• Battery: rechargeable Li-Battery
• Input Power: 5V, 1A

Dimension:

• Size: 55(L) X 37(W) X 32(H) mm
• Weight: 50g (include battery and adapter)

Package included:

• Capnography main unit

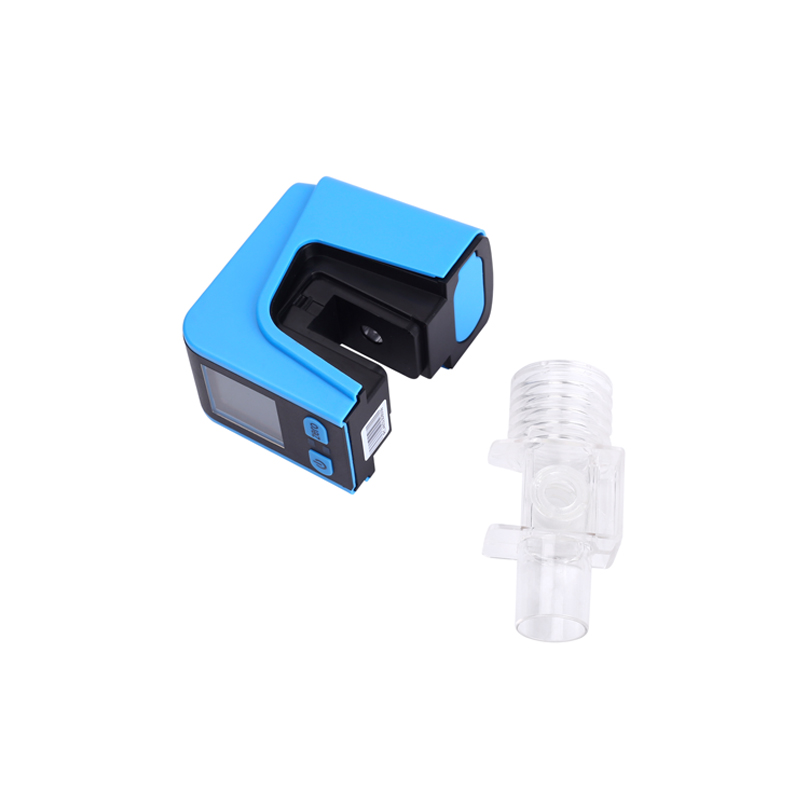

• Large airway adapter
• Small airway adapter
• USB Charger
• English User Manual
