CA80 Mini Capnograph Monitor

CA80 Portable Capnograph ETCO2 Monitor

PRODUCT DESCRIPTION

CA80 Portable Capnograph Monitor is used to measure the ETCO2, FICO2, RESP for veterinary. It is highly compact and portable to carry out. Also it is providing fast and reliable measurements for the patients. The measuring size of patients range from adult, pediatric to neonate. It is suitable for hospitals and clinics.

FEATURES

1. Parameters: ETCO2, fiCO2 and RESP.
2. Small in size, light in weight, only 50 grams.
3. One-key operation, low power consumption, up to 3 working hours.
4. Constant temperature control system to prevent water vapor interference effectively.
5. Large font display and waveform interface, unique inhaled carbon dioxide function.
6. Built-in lithium battery, waterproof IPX6.
7. Suitable for adult, pediatric and neonate.

SPECIFICATIONS

Transducer Type: Capno Micro Mainstream Capnometer
CO2 Accuracy:

• 0 – 40 mmHg ±2 mmHg
• 41 – 70 mmHg ±5% of reading
• 71 -100 mmHg ±8% of reading

Respiratory Rate:

• Range: 3 – 99 BPM
• Accuracy: ±1 breath

Alarm: Check adapter, No breath, Battery too low, ETCO2 too low, ETCO2 too high, INCO2 too high, RR too low, RR too high
Calibration: No routine user calibration required, the sensor automatic zero when plug in the adapter
Power Requirements:

• Battery: rechargeable Li-Battery
• Input Power: 5V, 1A

Dimension:

• Size: 55(L) X 37(W) X 32(H) mm
• Weigt: 50g (include battery and adapter)

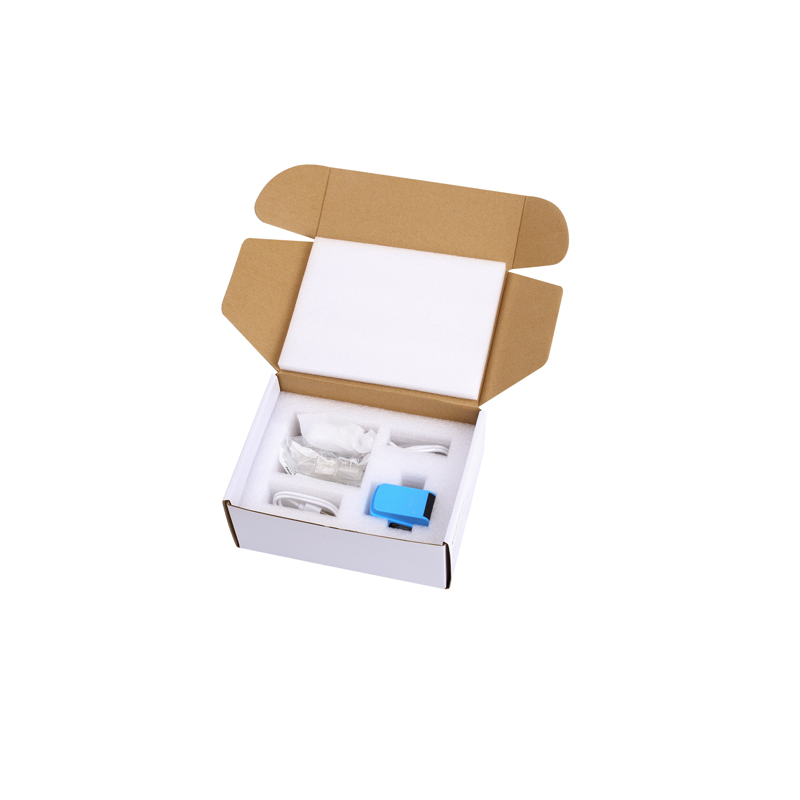

Package included:

• Capnograph main unit
• Large airway adapter
• Small airway adapter
• USB Charger
• English User Manual
